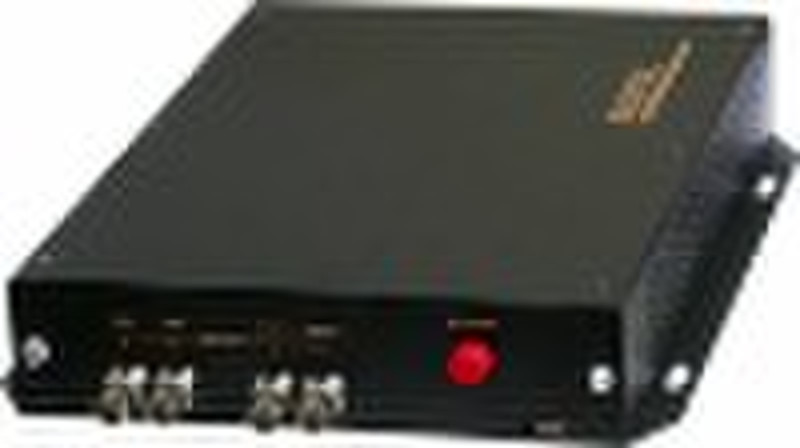

ASI/SDI Optical Transmitter/Receiver

ASI/SDI Optical Transmitter/Receiver Overview The product provides customer with the most cost-effective solution for transmission of 1 channel bi-directional HD-SDI/SDI/ASI digital video signal, with 1+1 remote input redundancy and 1 local input redundancy optional. It is an easy installation and adjustment free device while providing high quality, real-time video. It is widely used in the field of CCTV, video surveillance, and etc. Features Transmission 1 channel bi-directional SDI/ASI digital video signal over a single fiber Support many types of redundancy, including 1+1 remote side input redundancy, 1+2 remote side input redundancy and 1 local input redundancy, to make sure the video signal transmission with high stability Support SMPTE 305M (SDTi)SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s), M2S and DVB-ASI (270Mb/s) formats for SDI/ASI transmitter and receiver Support SMPTE 259M, SMPTE297M, SMPTE305M, SMPTE310M format and up to 1.485Gbps, and DVB-ASI (270Mb/s) formats for HD-SDI transmitter and receiver Transmission distance on the fiber is up to 80Km without relay AC and DC input power supply optional Standalone and module type optional Management Provide SNMP/WEB/Console management along with 4U high chassis View and configure the redundancy type Provide environment parameter monitoring, including power supply status and device operation temperature Provide user management to ensure the device operation security Specifications Power AC Input: 100 240V DC Input: -48V Power Consumption: ≤15W Video input ports Format: SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M, SMPTE 310M, SMPTE 344M, M2S& DVB-ASI, up to 1.485Gbps Number: 3 (2 for transmit and 1 for local backup input) Return Loss: >15dB Connector: 75 ohm BNC Video output ports Number: 3 (1 for local loop out and 2 for output from remote unit) Signal level: 800mV Rise/drop Time: 900ps Return Loss: >15dB Jitter: <0.2UI Connector: 75 ohm BNC Fiber port Number: 1 Type: Single-mode/Multi-mode optional Wavelength: 1310nm/1550nm Connector: FC/SC/ST optional Environment Operation Temperature: 0 50 Operation Relative Humidity: 0 90% Non-condensing Store Temperature: -20 65 Store Relative Humidity: 0 95% Non-condensing Dimension 20.6mm(W) * 276mm(D) * 173mm(H) Oder Information P/N Description F13-SD-1VTR-W3042FA 1 channel SDI/ASI transmitter and receiver, Standalone, 1310nm transmission wavelength, FC connector, 220VAC power supply F13-SD-1VTB-W3043CA 1 channel SDI/ASI transmitter with 1+1 input redundancy, Standalone, 1550nm transmission wavelength, SC connector, 220VAC power supply F13-HD-1VRB-W3043CA 1 channel HD-SDI receiver with 1 remote input and 1 local input redundancy, Standalone, 1550nm transmission wavelength, SC connector, 220VAC power supply
