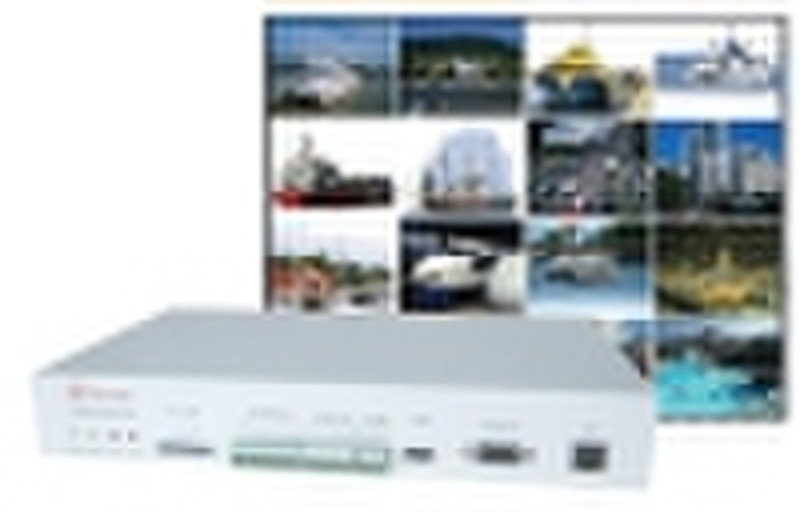

Digital IP video server

Digital IP video server FBVAD2000 Series Video Server, Video Encoder/Decoder and IP Camera are the products using latest technology which can be integrated easily into your existing analog CCTV (closed circuit television) system, helping users migrate analog security system into an IP-based video solution. Video server and IP camera digitize analog video, audio and data signals, and then send digital motive images directly over an IP network, such as a LAN, intranet or Internet. It essentially turns an analog video system into a network video system and enables users to view live video using a Web browser or management software on any local or remote computer on a network. It allows authorized viewers from different locations to simultaneously access videos from the same analog camera, as well as IP Cameras when they are added to the system. Video Encoder can encode the analog video, audio and data signals, and then sends digital motive images over an IP or E1 networks. At the other end, the Decoder decode the digital motive images to analog video, audio and data signals, and transmit these signals to TV Wall or other kinds of monitor system. 2.Features Using state-of-the-art H.264 encoding technology supports Full D1 resolution or 4* CIF resolution Max 30 frames/sec @ D1 resolution Much better video quality under low bit rate network Embedded Streaming Video Digital Video Motion detection Support OSD setting, including time, text or picture types Support USB ports to record videos Support Pelco-D PTZ Control Using Fi-View-VS software to monitor or configure the setting 3.Specification 3.1.System Main Processor: High performance embedded microprocessor Operating System: LINUX Control Mode: WEB & Windows based software 3.2.Video Video Input:1/2/4 Channel, 1.0Vp-p, 75Ω Video Standards: PAL625Line,50f/s,NTSC525Line,60f/s Video Compression: H.264 Video Resolution: D1/ HalfD1/ CIF/ QCIF Frame speed: PAL 1f/s-25f/s NTSC 1f/s-30f/s Connector: BNC 3.3.Audio Audio Input: 1/2/4 channel Audio Output: 1 channel Audio CompressionADPCM Connector: RCA 3.4.Alarm 1/2/4 channel bi-directional Connector: Terminal Block with Screw Clamps Normally open Nominal switching capacity: 3A/277VAC or 3A/30VDC 3.5.Data Interface RS232: Data transmitting, DB9 connector RS485: PTZ control, Terminal Block with Screw Clamps connector 3.6.USB Interface 1 Host port Compatible with USB 1.1 3.7.Environmental Power Supply: 12VDC Power consumption: <10W Working Temperature: 055 Working Humidity: 10%90% Atmosphere Pressure: 86kpa106kpa Mounting: Desktop 4.Order Information Model: FBVAD2000 Video Server, Video Encoder/Decoder, IP Camera F8-SH13A-1VT-1AT-2DTR-2CTR 1 Video input, 1 Audio input, 2Data(RS232+RS485), 2 Alarm Input/Output F8-SH13A-4VT-4AT-2DTR-4CTR 4Video input, 1 Audio input, 2Data(RS232+RS485),4 Alarm Input/Output ** We Reserve the right to amend descriptions and specifications without notice due to Fibridges policy of continuous product improvement**
